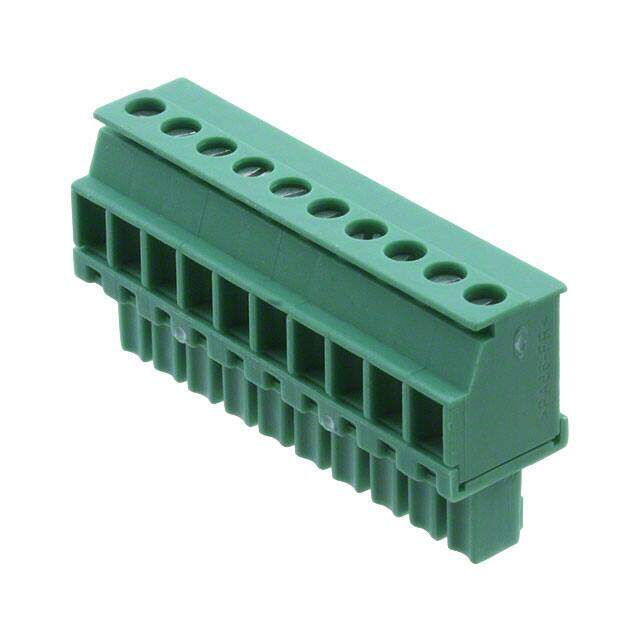

1827059
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON MCVW RoHS Compliant 2001 Straight Terminal Block Plug, Female Sockets UL94V-0 30AWG 270° 8A
PDF
/
Buying Options
Total Price: USD $10.84
Unit Price: USD $10.840472
≥1 USD $10.840472
≥10 USD $10.226862
≥100 USD $9.647982
≥500 USD $9.101874
≥1000 USD $8.58667
Inventory: 6379
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 10.4mm
Length 38.89mm
Height 12.5mm
Technical
Stripping Length 7mm
Screw Size M2
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 270°
Safety Approval UL
Number of Ways 10
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Wire/Cable Gauge 28 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 30 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Number of Contacts 10
Lead Pitch 3.81mm
Approval Agency CB, CSA, UL, VDE, cULus
Voltage - Rated AC 160V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 0.752 19.10mm
Depth 19.1mm
Orientation Straight
Pitch 0.150 3.81mm
Voltage - Rated DC 160V
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCVW
Published 2001
Packaging Bulk
Physical
Weight 100.999996g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
