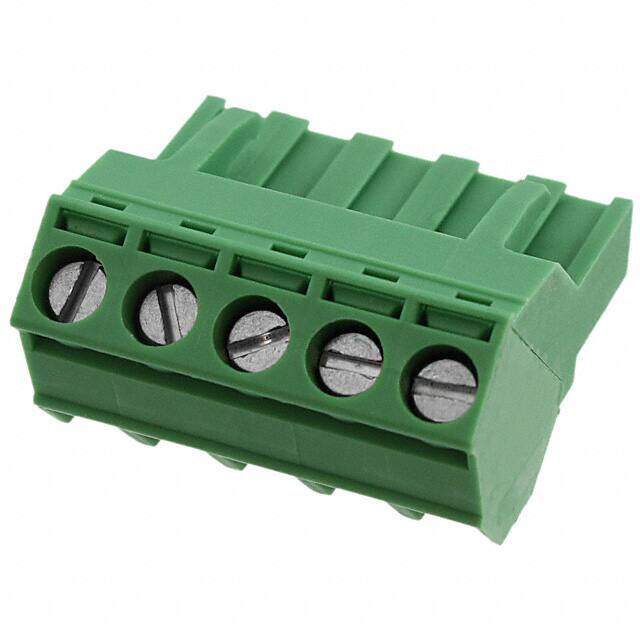

1826319 image
Favorite
1826319 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Terminal Blocks F 5 POS 5.08mm Screw Cable Mount 12A
PDF
/
Buying Options
Total Price: USD $4.49
Unit Price: USD $4.488
≥1 USD $4.488
Inventory: 495
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Cable, Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 131g

Technical

Packaging Bulk
Published 2008
Series COMBICON SMSTB
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Orientation Straight
Depth 15.5mm
Insulation Height 0.610 15.49mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Approval Agency CSA, UL, cULus
Number of Contacts 5
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 5
Safety Approval UL
Plug Wire Entry 225°
Wire Gauge or Range - mm2 0.2-2.5mm2
Screw Size M3
Stripping Length 7mm

Dimensions

Height 25.4mm
Length 15.5mm
Width 25.6mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
