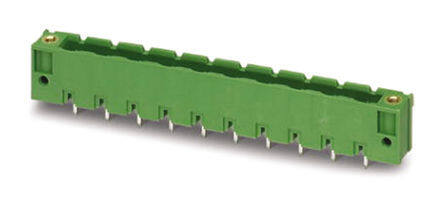

1825873
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON ICV RoHS Compliant 2011 Mating and Mounting Flange Retention Latches Terminal Block Header, Female Sockets UL94V-0 Vertical 10A 300V
PDF
/
Inventory: 1190
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 6.6mm
Technical
Current - IEC 12A
Header Orientation Vertical
Safety Approval UL
Number of Ways 20
Voltage - IEC 630V
Number of Decks 1
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Contact Tail Length 0.142 3.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.748 19.00mm
Depth 2.4mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 320V
Gender Female
Number of Rows 1
Color Green
Number of Positions 20
Type Header, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange, Retention Latches
Series COMBICON ICV
Published 2011
Packaging Bulk
Physical
Weight 165.000008g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
