1825831
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

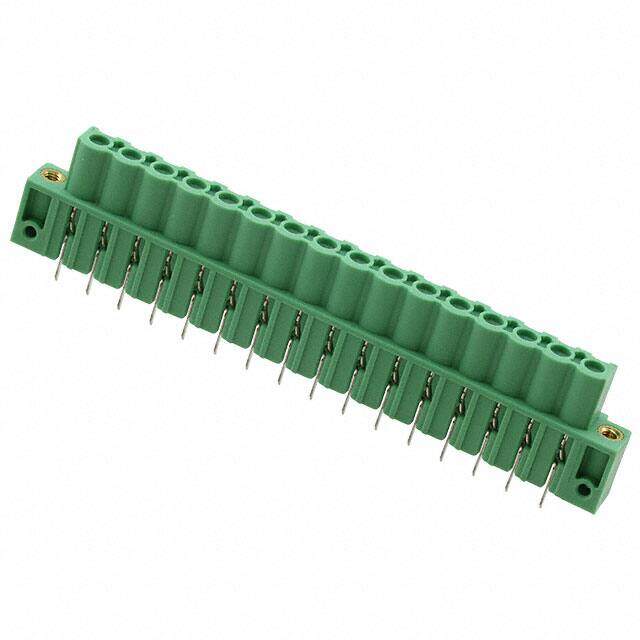

Pluggable Terminal Blocks 16 Pos 5.08mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $16.2
Unit Price: USD $16.204019
≥1 USD $16.204019
≥10 USD $15.286815
≥100 USD $14.421523
≥500 USD $13.605212
≥1000 USD $12.835099
Inventory: 1484
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 5mm
Technical
Number of Positions Per Level 16
Header Orientation Vertical
Safety Approval UL
Number of Ways 16
Voltage - IEC 630V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.142 3.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.748 19.00mm
Depth 4mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 320V
Number of Rows 1
Color Green
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Type Header, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange, Retention Latches
Series COMBICON ICV
Published 2011
Packaging Bulk
Physical
Weight 165.000008g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
