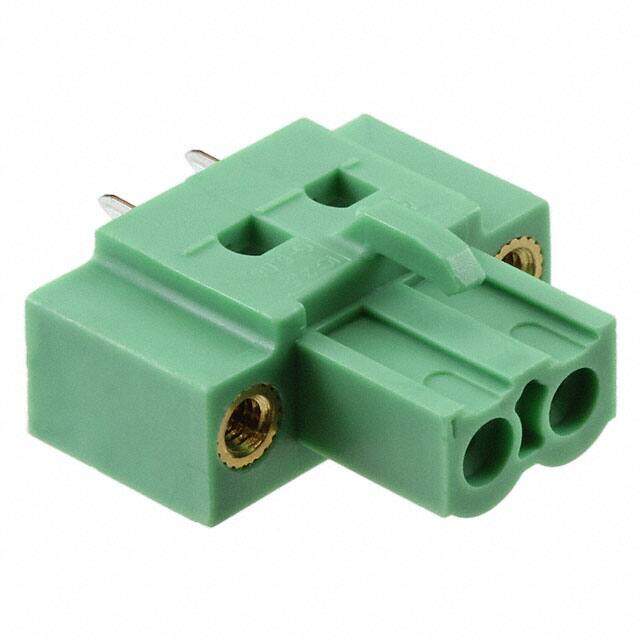

1825695
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 5.08mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $2.75
Unit Price: USD $2.7456
≥1 USD $2.7456
Inventory: 191
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 165.000008g
Technical
Packaging Bulk
Published 2011
Series COMBICON ICV
Feature Mating and Mounting Flange, Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Number of Positions 2
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Depth 10.2mm
Insulation Height 0.748 19.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.142 3.60mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 630V
Number of Ways 2
Safety Approval CB; CCA; CSA; CUL; EAC; UL
Header Orientation Vertical
Fastening Method CONNECTOR
Dimensions
Height 20.28mm
Length 20.28mm
Width 22.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
