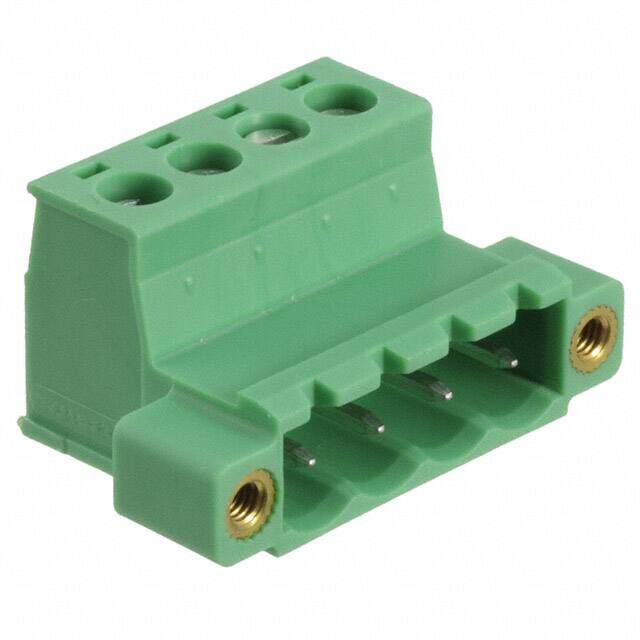

1825527 image
Favorite
1825527 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Terminal Blocks M 4 POS 5.08mm Screw RA Panel Mount 12A
PDF
/
Buying Options
Total Price: USD $7
Unit Price: USD $6.996
≥1 USD $6.996
≥10 USD $6.80504
≥100 USD $6.35976
≥500 USD $5.851032
≥1000 USD $5.741437
Inventory: 846
Minimum: 1
-
+

Technical Details

Technical

Depth 19.2mm
Orientation Right Angle
Pitch 0.200 5.08mm
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Plug, Male Pins
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON IC
Published 2011
Packaging Bulk
Wire Cross Section 2.5 mm2
Screw Size M3
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 4
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Current - UL 10A
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 12A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 250V
Voltage 300V
Number of Contacts 4
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 0.591 15.00mm

Physical

Weight 137.000006g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel

Supply Chain

Factory Lead Time 7 Weeks

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 30.44mm
