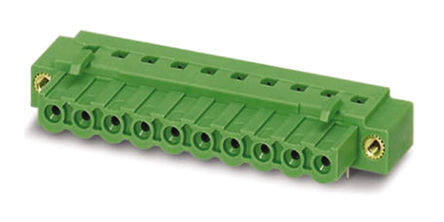

1825161
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 5.08mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $7.15
Unit Price: USD $7.145864
≥1 USD $7.145864
≥10 USD $6.74138
≥100 USD $6.359801
≥500 USD $5.999812
≥1000 USD $5.660193
Inventory: 3671
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 165.000008g
Technical
Packaging Bulk
Published 2011
Series COMBICON IC
Feature Mating and Mounting Flange, Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Number of Positions 6
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.402 10.20mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 10A
Number of Decks 1
Voltage - IEC 630V
Number of Ways 6
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 12A
Dimensions
Height 19mm
Length 13.7mm
Width 40.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
