1825145
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

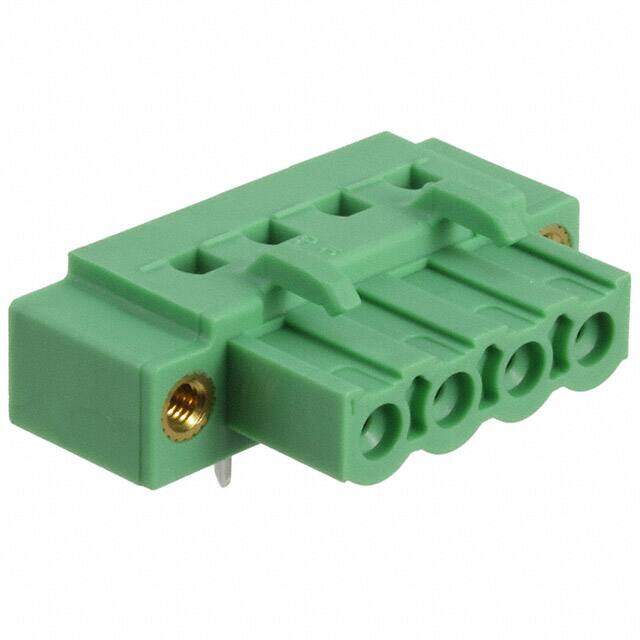

Pluggable Terminal Blocks 4 Pos 5.08mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $4.76
Unit Price: USD $4.7608
≥1 USD $4.7608
≥10 USD $4.62704
≥100 USD $4.32432
≥500 USD $3.978392
≥1000 USD $3.903891
Inventory: 307
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 30.44mm
Length 30.44mm
Height 19mm
Technical
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 4
Voltage - IEC 630V
Current - UL 10A
Number of Decks 1
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.402 10.20mm
Depth 19mm
Orientation Right Angle
Pitch 0.200 5.08mm
Voltage - Rated 320V
Number of Rows 1
Color Green
Number of Positions 4
Type Header, Female Sockets
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange, Retention Latches
Series COMBICON IC
Published 2011
Packaging Bulk
Physical
Weight 165.000008g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
