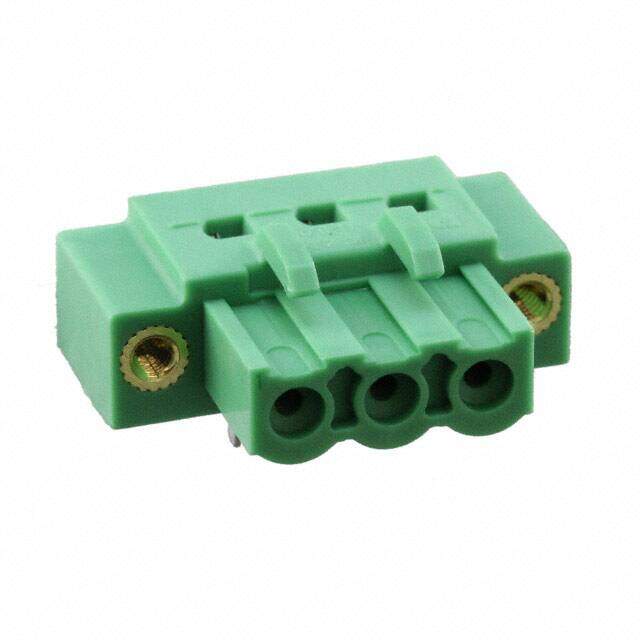

1825132
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $3.95
Unit Price: USD $3.9512
≥1 USD $3.9512
≥10 USD $3.84736
≥100 USD $3.59568
≥500 USD $3.308008
≥1000 USD $3.246109
Inventory: 55
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 165.000008g
Technical
Packaging Bulk
Published 2011
Series COMBICON IC
Feature Mating and Mounting Flange, Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Socket
Type Header, Female Sockets
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 11.51mm
Insulation Height 0.402 10.20mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Number of Decks 1
Current - UL 10A
Voltage - IEC 630V
Number of Ways 3
Safety Approval UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 3
Dimensions
Height 19mm
Length 11.51mm
Width 25.36mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
