1824272
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

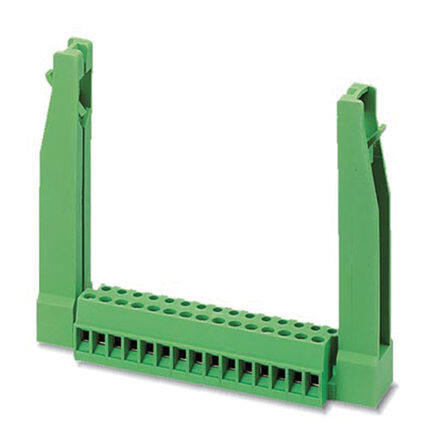

COMBICON MSTBU RoHS Compliant 2011 Mounting Flange Retention Latches Terminal Block Receptacle, Female Sockets UL94V-0 12AWG 10A 300V
PDF
/
Inventory: 1134
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Cross Section 2.5 mm2
Screw Size M3
Current - IEC 12A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Safety Approval UL
Number of Ways 17
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screw
Current Rating 12A
Insulation Height 0.669 17.00mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 320V
Number of Rows 1
Color Green
Number of Positions 17
Type Receptacle, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mounting Flange, Retention Latches
Series COMBICON MSTBU
Published 2011
Packaging Bulk
Physical
Weight 205.999995g
Housing Material Polyamide (PA), Nylon
Mounting Type Board Mount
Supply Chain
Factory Lead Time 5 Weeks
