1824256
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

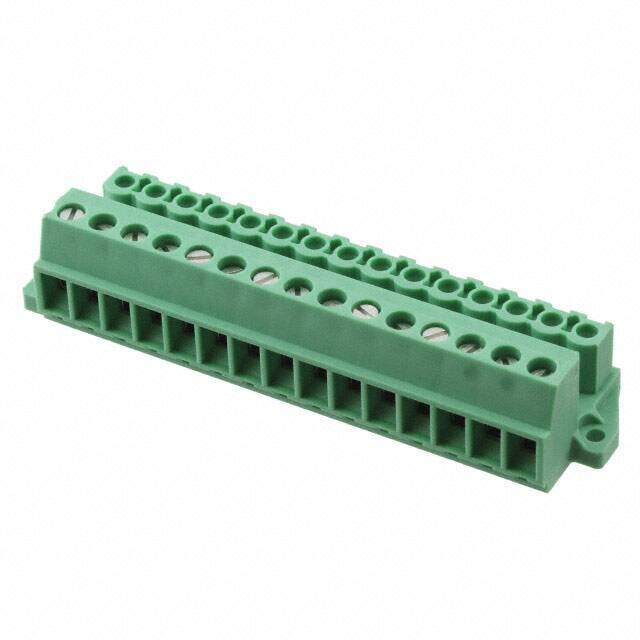

Pluggable Terminal Blocks 15 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Inventory: 7452
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 86.08mm
Length 25.5mm
Height 26mm
Technical
Wire Cross Section 2.5 mm2
Screw Size M3
Number of Positions Per Level 15
Current - IEC 12A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Safety Approval UL
Number of Ways 15
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screw
Current Rating 12A
Insulation Height 0.669 17.00mm
Depth 17mm
Orientation Straight
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 320V
Gender Female
Number of Rows 1
Color Green
Type Receptacle, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mounting Flange, Retention Latches
Series COMBICON MSTBU
Published 2011
Packaging Bulk
Physical
Weight 205.999995g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Board Mount
Mount Plug-In
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
