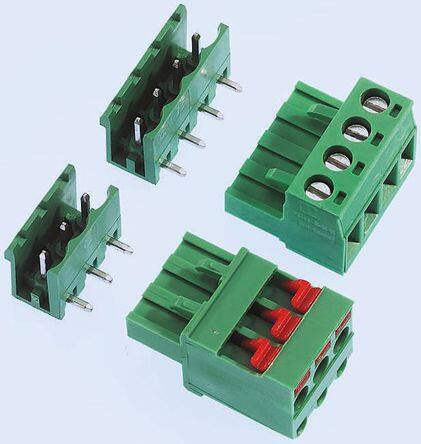

1824188
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $18.2
Unit Price: USD $18.200079
≥1 USD $18.200079
≥10 USD $17.169887
≥100 USD $16.198007
≥500 USD $15.281132
≥1000 USD $14.416162
Inventory: 4746
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Panel
Mounting Type Board Mount
Housing Material Polyamide (PA), Nylon
Weight 205.999995g
Technical
Packaging Bulk
Published 2010
Series COMBICON MSTBU
Feature Mounting Flange, Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw, Socket
Type Receptacle, Female Sockets
Number of Positions 8
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.669 17.00mm
Current Rating 12A
Termination Style Screw
Approval Agency CB, CSA, UL, VDE
Number of Contacts 8
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 8
Safety Approval UL
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Dimensions
Height 25.5mm
Length 22mm
Width 50.52mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
