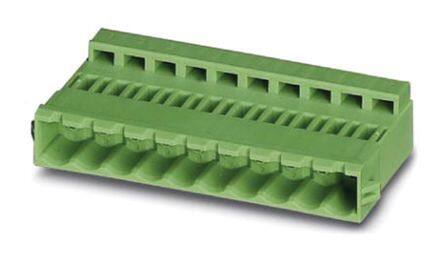

1823736 image
Favorite
1823736 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 14 Pos 5.08mm Invert Plug 20-14AWG Crimp
PDF
/
Inventory: 1092
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Current - IEC 12A
Wire Gauge or Range - mm2 0.5-2.5mm2
Plug Wire Entry 180°
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-20 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 20 AWG
Current 10A
Number of Levels 1
Voltage 300V
Current Rating 12A
Insulation Height 0.417 10.60mm
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
HTS Code 8536.69.40.30
Voltage - Rated 250V
Color Green
Number of Positions 14
Type Plug Housing for Male Pins
Connector Type Crimp
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON ICC
Published 2011
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Contact Material NOT SPECIFIED

Supply Chain

Factory Lead Time 7 Weeks
