1821229
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

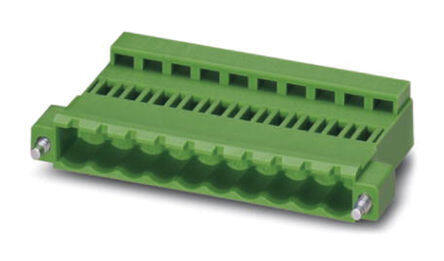

MICRO-COMBICON FMC RoHS Compliant 2015 Gold Terminal Block Plug, Female Sockets 20-26AWG 180° 6A 160V
PDF
/
Inventory: 1265
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Free Hanging (In-Line)
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2015
Series MICRO-COMBICON FMC
Part Status Active
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 15
Color Black
HTS Code 8536.69.40.40
Pitch 0.100 2.54mm
Insulation Height 0.211 5.35mm
Termination Style Screwless - Leg Spring, Push-In Spring
Number of Levels 1
Contact Mating Finish Gold
Voltage - UL 150V
Wire Gauge or Range - AWG 20-26 AWG
Voltage - IEC 160V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-0.5mm2
Wire Strip Length 7mm
Current - IEC 6A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
