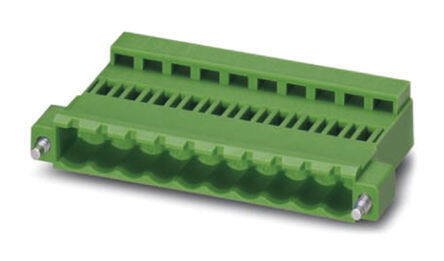

1821177
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
PLUG COMPONENT NOMINAL CURRENT:
PDF
/
Buying Options
Total Price: USD $11.16
Unit Price: USD $11.1584
≥1 USD $11.1584
≥10 USD $10.67264
≥100 USD $10.381184
≥500 USD $9.702
≥1000 USD $8.925875
≥3000 USD $8.758746
Inventory: 135
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mounting Type Free Hanging (In-Line)
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2015
Series MICRO-COMBICON FMC
Part Status Active
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 10
Color Black
HTS Code 8536.69.40.40
Pitch 0.100 2.54mm
Insulation Height 0.211 5.35mm
Termination Style Screwless - Leg Spring, Push-In Spring
Number of Levels 1
Contact Mating Finish Gold
Voltage - UL 150V
Wire Gauge or Range - AWG 20-26 AWG
Voltage - IEC 160V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-0.5mm2
Wire Strip Length 7mm
Current - IEC 6A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
