1818533
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Phoenix Contact DMC Series, 3.5mm Pitch 5 Way Printed Circuit Board Connector, Solder Termination, 8A
PDF
/
Inventory: 1179
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical

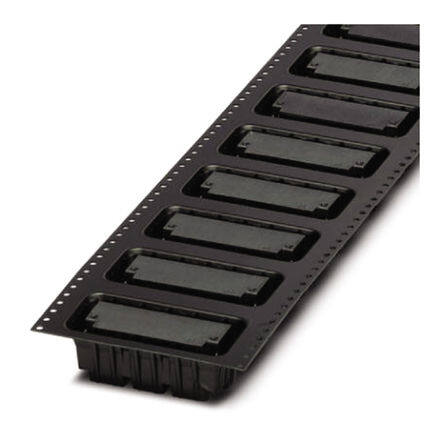

Packaging Tape & Reel (TR)
Published 2015
Series COMBICON DMC
Feature Mating and Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Color Black
Number of Rows 2
Voltage - Rated 250V
Additional Feature STANDARD: UL 94V-0, LCP
Pitch 0.138 3.50mm
Insulation Height 0.425 10.80mm
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.079 2.00mm
Number of Levels 2
Current 8A
Contact Mating Finish Tin
Voltage - UL 150V
Number of Decks 1
Number of Ways 5
Safety Approval CB; CUL; UL; VDE
Header Orientation 90°, Right Angle
Number of Positions Per Level 5
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
