1817990
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

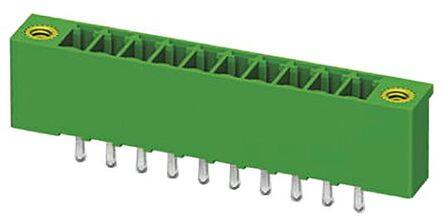

Phoenix Contact MINI COMBICON MCV Series 3.5mm Pitch Straight Pluggable Terminal Block, Header with Plug In Termination
PDF
/
Buying Options
Total Price: USD $1.89
Unit Price: USD $1.892
≥1 USD $1.892
≥10 USD $1.8392
≥100 USD $1.71864
≥500 USD $1.581184
≥1000 USD $1.551546
Inventory: 63
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Material PBT
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2014
Series MINI-COMBICON MCV
Feature Mating and Mounting Flange
Part Status Active
Termination Plug
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Color Green
Gender Male
Voltage - Rated 250V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Orientation Straight
Depth 9.2mm
Insulation Height 0.362 9.20mm
Current Rating 8A
Termination Style Solder
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 160V
Header Orientation Vertical
Dimensions
Length 17.3mm
Width 7.25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
