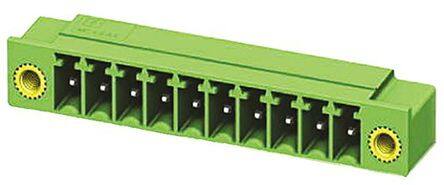

1817835
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 5POS 90DEG 3.81MM
PDF
/
Inventory: 8510
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 7.25mm
Length 29.44mm
Technical
Number of Positions Per Level 5
Header Orientation 90°, Right Angle
Voltage - IEC 250V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Solder
Current Rating 8A
Reach Compliance Code not_compliant
Insulation Height 0.285 7.25mm
Depth 9.2mm
Orientation Straight
Pitch 0.150 3.81mm
Voltage - Rated 250V
Gender Male
Color Green
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp, Mating and Mounting Flange
Series COMBICON MC
Published 2014
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Material PBT
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 5 Weeks
