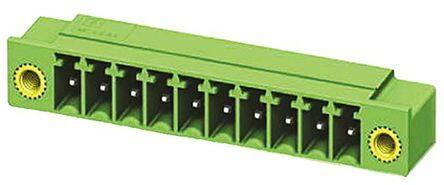

1817822
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 4POS 90DEG 3.81MM
PDF
/
Buying Options
Total Price: USD $2.94
Unit Price: USD $2.9392
≥1 USD $2.9392
≥10 USD $2.8556
≥100 USD $2.66904
≥500 USD $2.455552
≥1000 USD $2.409546
Inventory: 22
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 7.25mm
Length 25.63mm
Technical
Number of Positions Per Level 4
Header Orientation 90°, Right Angle
Voltage - IEC 250V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Voltage 300V
Termination Style Solder
Current Rating 8A
Reach Compliance Code not_compliant
Insulation Height 0.285 7.25mm
Depth 9.2mm
Orientation Straight
Pitch 0.150 3.81mm
Voltage - Rated 250V
Gender Male
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp, Mating and Mounting Flange
Series COMBICON MC
Published 2014
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Material PBT
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
