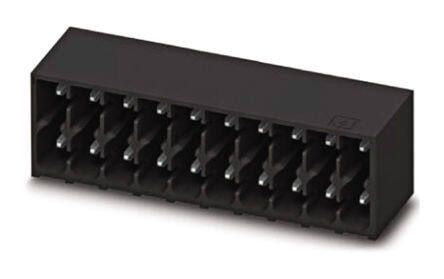

1817770
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON MC RoHS Compliant 2015 Locking Ramp Mating and Mounting Flange Terminal Block Header, Male Pins, Shrouded (4 Side) 90° Right Angle 8A 300V 0.285 7.25mm
PDF
/
Inventory: 1089
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Header Orientation 90°, Right Angle
Voltage - IEC 250V
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Reach Compliance Code not_compliant
Insulation Height 0.285 7.25mm
Pitch 0.138 3.50mm
Color Green
Number of Positions 18
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp, Mating and Mounting Flange
Series COMBICON MC
Published 2015
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
