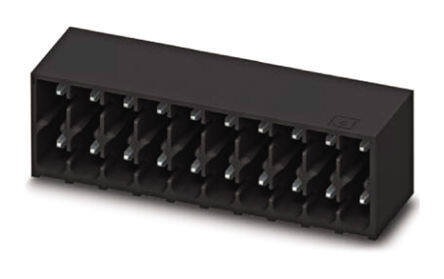

1817699
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 10POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $4.14
Unit Price: USD $4.136
≥1 USD $4.136
Inventory: 41
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Series COMBICON MC
Feature Locking Ramp, Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Color Green
Pitch 0.138 3.50mm
Insulation Height 0.285 7.25mm
Reach Compliance Code not_compliant
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 250V
Header Orientation 90°, Right Angle
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
