1817631
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

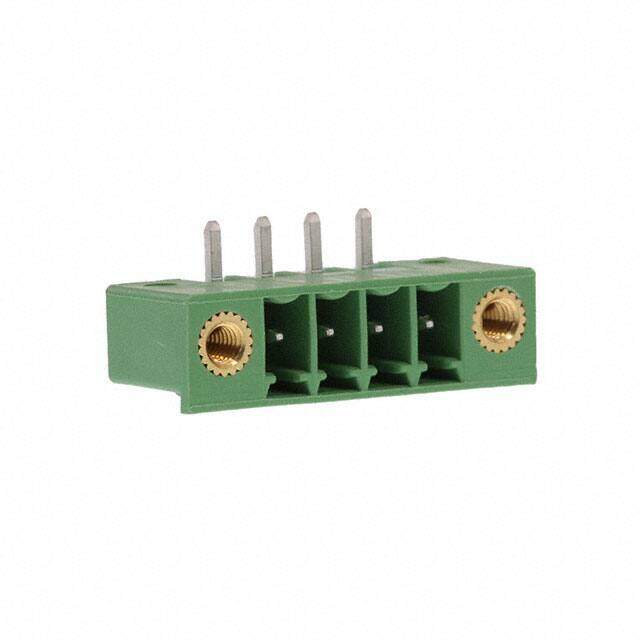

TERM BLOCK HDR 4POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.259331
≥1 USD $1.259331
≥10 USD $1.188052
≥100 USD $1.120803
≥500 USD $1.057359
≥1000 USD $0.997515
Inventory: 6203
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Material PBT
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2014
Series COMBICON MC
Feature Locking Ramp, Mating and Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Gender Male
Voltage - Rated 250V
Pitch 0.138 3.50mm
Orientation Straight
Depth 9.2mm
Insulation Height 0.285 7.25mm
Reach Compliance Code not_compliant
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.134 3.40mm
Number of Levels 1
Current 8A
Contact Mating Finish Tin
Voltage - IEC 250V
Header Orientation 90°, Right Angle
Number of Positions Per Level 4
Dimensions
Length 24.3mm
Width 7.25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
