1817534
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

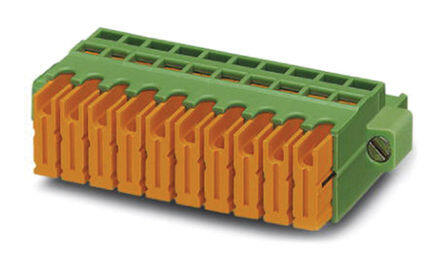

COMBICON FK-MCP RoHS Compliant 2015 Ejector Latches Retention Latches (Non-Wire Side) Terminal Block Plug, Female Sockets 28AWG 180° 8A 300V
PDF
/
Buying Options
Total Price: USD $47.87
Unit Price: USD $47.868334
≥1 USD $47.868334
≥200 USD $19.100069
≥500 USD $18.462
≥1000 USD $18.146904
Inventory: 1229
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2015
Series COMBICON FK-MCP
Feature Ejector Latches, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Female Sockets
Number of Positions 13
Color Green
Pitch 0.150 3.81mm
Insulation Height 0.560 14.22mm
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-28 AWG
Voltage - IEC 320V
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 9mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
