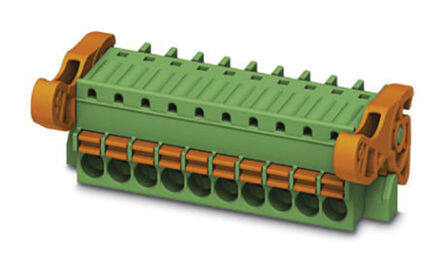

1817327
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 11POS STR 3.5MM
PDF
/
Buying Options
Total Price: USD $42.97
Unit Price: USD $42.973843
≥1 USD $42.973843
≥200 USD $17.147787
≥500 USD $16.57405
≥1000 USD $16.291776
Inventory: 1131
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Wire Gauge or Range - AWG 16-28 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 28 AWG
Current 8A
Number of Levels 1
Voltage 320V
Termination Style Screwless - Push-In Spring
Insulation Height 0.560 14.22mm
Pitch 0.138 3.50mm
Color Green
Number of Positions 11
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Ejector Latches, Retention Latches (Non-Wire Side)
Series COMBICON FK-MCP
Published 2015
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 7 Weeks
