1817259
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

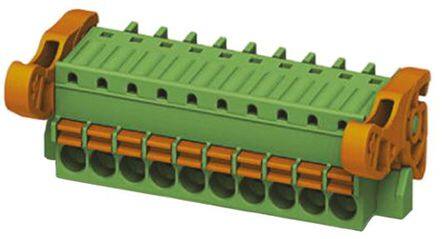

Phoenix Contact MINI COMBICON FK-MCP Series 3.5mm Pitch Straight Pluggable Terminal Block, Plug
PDF
/
Buying Options
Total Price: USD $6.9
Unit Price: USD $6.8992
≥1 USD $6.8992
≥10 USD $6.71176
≥100 USD $6.27264
≥500 USD $5.770864
≥1000 USD $5.6628
Inventory: 110
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 14.22mm
Length 21.04mm
Technical
Number of Positions Per Level 4
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Wire Gauge or Range - AWG 16-28 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 28 AWG
Current 8A
Number of Levels 1
Voltage 320V
Termination Style Screwless - Push-In Spring
Current Rating 8A
Insulation Height 0.560 14.22mm
Depth 27.4mm
Orientation Straight
Pitch 0.138 3.50mm
Voltage - Rated 320V
Gender Male
Color Green
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Ejector Latches, Retention Latches (Non-Wire Side)
Series COMBICON FK-MCP
Published 2014
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
