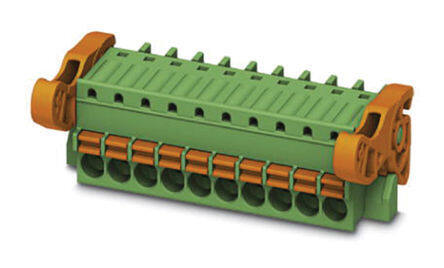

1817123
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON MC RoHS Compliant 2015 Ejector Latches Terminal Block Plug, Female Sockets 30AWG 180° 8A 300V
PDF
/
Buying Options
Total Price: USD $12.19
Unit Price: USD $12.194752
≥1 USD $12.194752
≥10 USD $11.504486
≥100 USD $10.853287
≥500 USD $10.238952
≥1000 USD $9.659394
Inventory: 1143
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2015
Series COMBICON MC
Feature Ejector Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Plug, Female Sockets
Number of Positions 10
Color Green
Pitch 0.150 3.81mm
Insulation Height 0.535 13.60mm
Reach Compliance Code not_compliant
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
