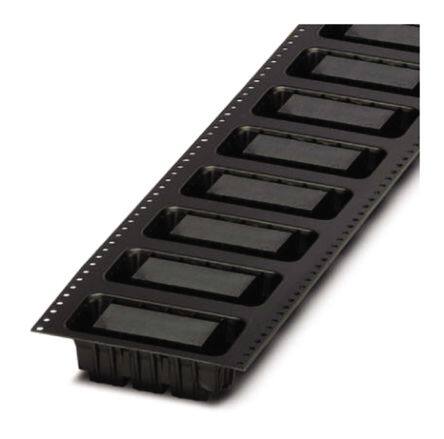

1816166
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Phoenix Contact DMC Series, 3.5mm Pitch 5 Way Printed Circuit Board Connector, Solder Termination, 8A
PDF
/
Buying Options
Total Price: USD $4.42
Unit Price: USD $4.418599
≥1 USD $4.418599
≥10 USD $4.16849
≥100 USD $3.932535
≥500 USD $3.709938
≥1000 USD $3.499943
Inventory: 6991
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2015
Series COMBICON DMC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Color Black
Voltage - Rated 250V
Pitch 0.138 3.50mm
Insulation Height 0.425 10.80mm
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.079 2.00mm
Number of Levels 2
Current 8A
Contact Mating Finish Tin
Voltage - UL 150V
Header Orientation 90°, Right Angle
Number of Positions Per Level 5
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
