1813033
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

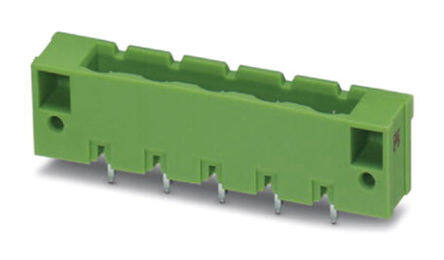

Phoenix Contact GMSTBVA Series, 7.62mm Pitch 8 Way Printed Circuit Board Connector, Solder Termination, 16A
PDF
/
Inventory: 1072
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 8
Current - IEC 16A
Header Orientation Vertical
Voltage - UL 300V
Contact Mating Finish Tin
Current 18.5A
Number of Levels 1
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 16A
Insulation Height 0.472 12.00mm
Pitch 0.300 7.62mm
Voltage - Rated 630V
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp, Mounting Flange
Series COMBICON GMSTBVA
Published 2015
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
