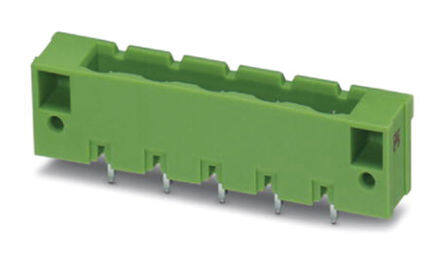

1813020
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON GMSTBVA RoHS Compliant 2015 Locking Ramp Mounting Flange Terminal Block Header, Male Pins, Shrouded (4 Side) Vertical 18.5A 300V 0.472 12.00mm
PDF
/
Buying Options
Total Price: USD $7.17
Unit Price: USD $7.173686
≥1 USD $7.173686
≥200 USD $2.862122
≥500 USD $2.767593
≥1000 USD $2.720329
Inventory: 9973
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2015
Series COMBICON GMSTBVA
Feature Locking Ramp, Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Voltage - Rated 630V
Pitch 0.300 7.62mm
Insulation Height 0.472 12.00mm
Current Rating 16A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 18.5A
Contact Mating Finish Tin
Voltage - UL 300V
Header Orientation Vertical
Current - IEC 16A
Number of Positions Per Level 7
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
