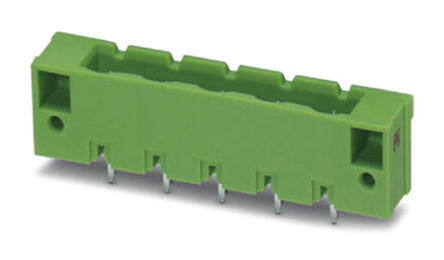

1812995
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 4POS VERT 7.62MM
PDF
/
Buying Options
Total Price: USD $1.64
Unit Price: USD $1.6368
≥1 USD $1.6368
Inventory: 83
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2014
Series COMBICON GMSTBVA
Feature Locking Ramp, Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Green
Pitch 0.300 7.62mm
Insulation Height 0.472 12.00mm
Termination Style Solder
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 18.5A
Voltage - IEC 630V
Header Orientation Vertical
Current - IEC 16A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
