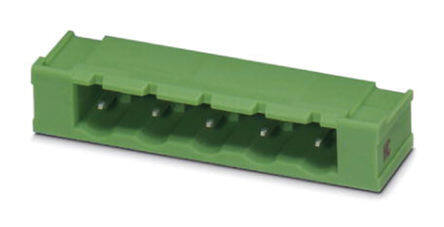

1812911
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON GMSTBA RoHS Compliant 2015 Locking Ramp Terminal Block Header, Male Pins, Shrouded (4 Side) 90° Right Angle 18.5A 300V 0.339 8.61mm
PDF
/
Inventory: 1091
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2015
Series COMBICON GMSTBA
Feature Locking Ramp
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Voltage - Rated 1kV
Pitch 0.300 7.62mm
Insulation Height 0.339 8.61mm
Current Rating 16A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.126 3.20mm
Number of Levels 1
Current 18.5A
Contact Mating Finish Tin
Voltage - UL 300V
Header Orientation 90°, Right Angle
Current - IEC 16A
Number of Positions Per Level 7
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
