1812856
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

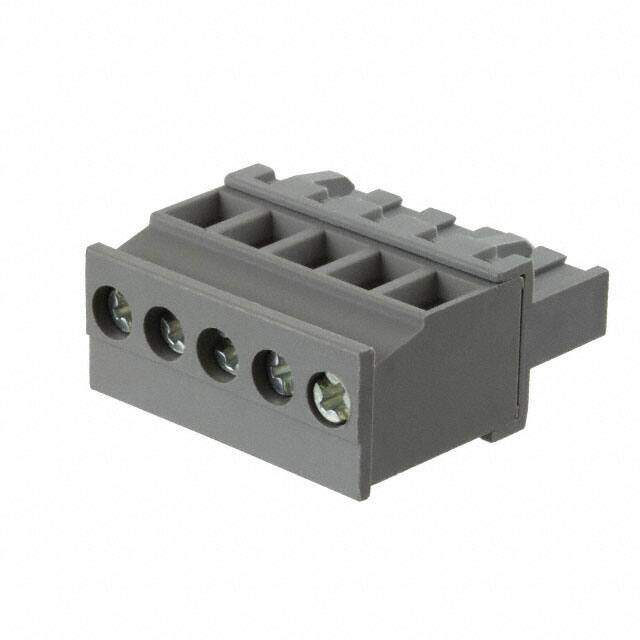

COMBICON GMSTB RoHS Compliant Ejector Latches Retention Latches (Non-Wire Side) Tin Terminal Block Plug, Female Sockets 30AWG 180° 18.5A 600V
PDF
/
Buying Options
Total Price: USD $51.18
Unit Price: USD $51.180781
≥1 USD $51.180781
≥200 USD $20.42216
≥500 USD $19.739452
≥1000 USD $19.402036
Inventory: 1185
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Series COMBICON GMSTB
Feature Ejector Latches, Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Plug, Female Sockets
Number of Positions 12
Color Green
Pitch 0.300 7.62mm
Insulation Height 0.689 17.50mm
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 18.5A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 8mm
Current - IEC 16A
Screw Size M3
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
