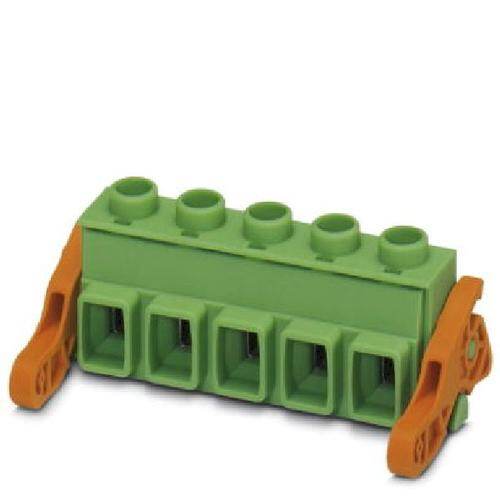

1812814 image
Favorite
1812814 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON GMSTB RoHS Compliant Ejector Latches Retention Latches (Non-Wire Side) Tin Terminal Block Plug, Female Sockets 30AWG 180° 18.5A 600V
PDF
/
Buying Options
Total Price: USD $15.8
Unit Price: USD $15.8048
≥1 USD $15.8048
≥10 USD $15.37624
≥100 USD $14.3704
≥500 USD $13.220768
≥1000 USD $12.214928
≥3000 USD $11.676051
Inventory: 119
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Series COMBICON GMSTB
Feature Ejector Latches, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Plug, Female Sockets
Number of Positions 8
Color Green
Pitch 0.300 7.62mm
Insulation Height 0.689 17.50mm
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 18.5A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 8mm
Current - IEC 16A
Screw Size M3

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
