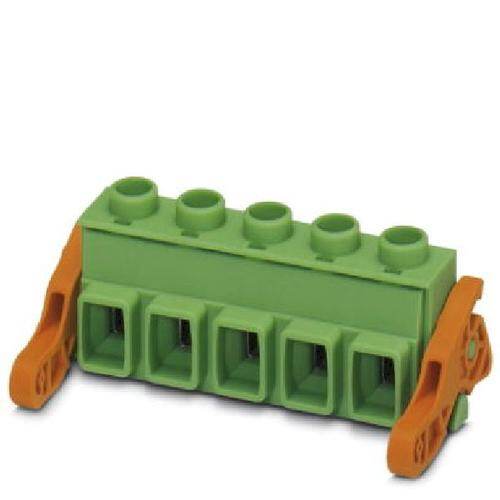

1812759
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 2POS STR 7.62MM
PDF
/
Buying Options
Total Price: USD $4.1
Unit Price: USD $4.1008
≥1 USD $4.1008
≥10 USD $3.99168
≥100 USD $3.73032
≥500 USD $3.431912
≥1000 USD $3.367654
Inventory: 120
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Screw Size M3
Current - IEC 16A
Wire Strip Length 8mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 1kV
Wire Gauge or Range - AWG 12-30 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 18.5A
Number of Levels 1
Voltage 600V
Termination Style Screw - Rising Cage Clamp
Reach Compliance Code not_compliant
Insulation Height 0.689 17.50mm
Pitch 0.300 7.62mm
Color Green
Number of Positions 2
Type Plug, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Ejector Latches, Retention Latches (Non-Wire Side)
Series COMBICON GMSTB
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 7 Weeks
