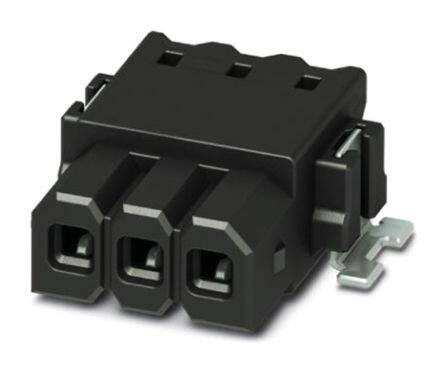

1810777 image
Favorite
1810777 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON PTSM RoHS Compliant 2014 Board Guide Solder Retention Terminal Block Header, Female Sockets 90° Right Angle 5A 150V 0.197 5.00mm
PDF
/
Inventory: 3911
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Housing Material Liquid Crystal Polymer (LCP)

Technical

Packaging Tape & Reel (TR)
Published 2014
Series COMBICON PTSM
Feature Board Guide, Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Female Sockets
Color Black
Voltage - Rated 160V
Pitch 0.098 2.50mm
Insulation Height 0.197 5.00mm
Current Rating 6A
Termination Style Solder
Voltage 150V
Number of Levels 1
Current 5A
Contact Mating Finish Tin
Voltage - UL 150V
Header Orientation 90°, Right Angle
Current - IEC 6A
Number of Positions Per Level 8

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
