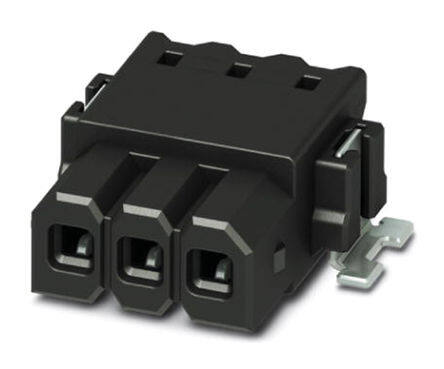

1810719
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 2POS 90DEG 2.5MM
PDF
/
Buying Options
Total Price: USD $0.57
Unit Price: USD $0.572
≥1 USD $0.572
Inventory: 957
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Tape & Reel (TR)
Published 2014
Series COMBICON PTSM
Feature Board Guide, Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Female Sockets
Color Black
Voltage - Rated 160V
Pitch 0.098 2.50mm
Insulation Height 0.197 5.00mm
Current Rating 6A
Termination Style Solder
Voltage 150V
Number of Levels 1
Current 5A
Contact Mating Finish Tin
Voltage - UL 150V
Header Orientation 90°, Right Angle
Current - IEC 6A
Number of Positions Per Level 2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
