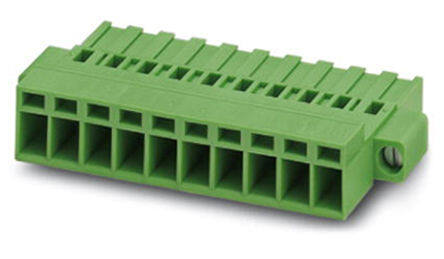

1809941 image
Favorite
1809941 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON MSTBC RoHS Compliant 2011 Mating Flange Terminal Block Plug Housing for Female Sockets UL94V-0 20AWG 180° 10A
PDF
/
Inventory: 1117
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Published 2011
Series COMBICON MSTBC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Crimp
Type Plug Housing for Female Sockets
Number of Positions 23
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.413 10.49mm
Current Rating 12A
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-20 AWG
Voltage - IEC 630V
Number of Ways 23
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-2.5mm2
Current - IEC 12A
Wire Cross Section 2.5 mm2

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
