1809815
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

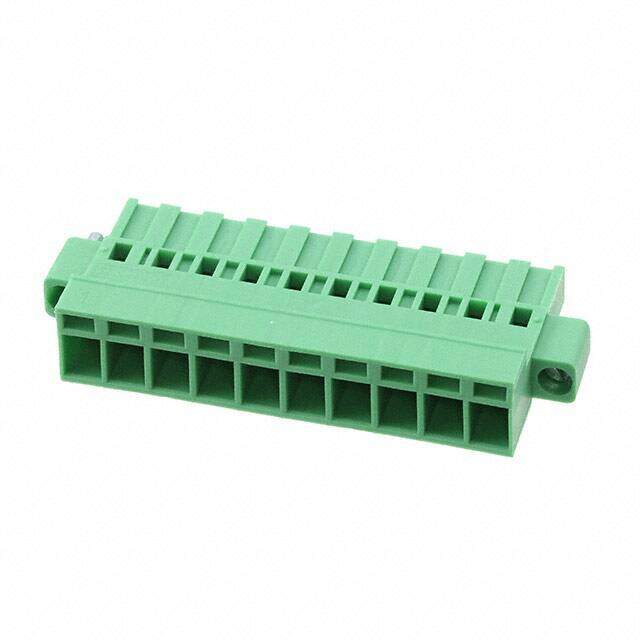

Pluggable Terminal Blocks 10 Pos 5.08mm pitch Plug 20-14 AWG Crimp
PDF
/
Buying Options
Total Price: USD $1.54
Unit Price: USD $1.543694
≥1 USD $1.543694
≥10 USD $1.45631
≥100 USD $1.373877
≥500 USD $1.296116
≥1000 USD $1.222747
Inventory: 9162
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Wire Cross Section 2.5 mm2
Current - IEC 12A
Wire Gauge or Range - mm2 0.5-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 10
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-20 AWG
Number of Decks 1
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 14 AWG
Current 10A
Number of Levels 1
Voltage 300V
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.413 10.49mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 320V
Number of Rows 1
Color Green
Number of Positions 10
Type Plug Housing for Female Sockets
Connector Type Crimp
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MSTBC
Published 2011
Packaging Bulk
Physical
Weight 6.505989g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
