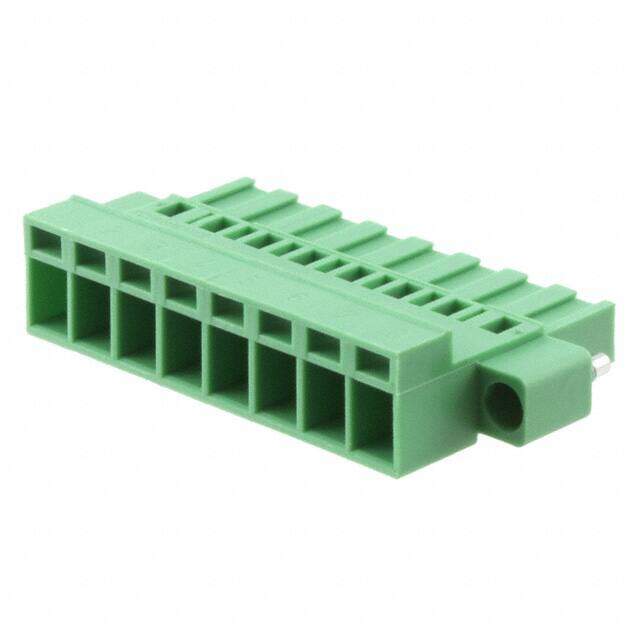

1809792
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 5.08mm pitch Plug 20-14 AWG Crimp
PDF
/
Buying Options
Total Price: USD $3.23
Unit Price: USD $3.2296
≥1 USD $3.2296
≥10 USD $3.14424
≥100 USD $2.93832
≥500 USD $2.703272
≥1000 USD $2.652637
Inventory: 69
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 25mm
Length 50.3mm
Height 25mm
Technical
Wire Cross Section 2.5 mm2
Number of Positions Per Level 8
Current - IEC 12A
Wire Gauge or Range - mm2 0.5-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 8
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-20 AWG
Number of Decks 1
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 20 AWG
Current 10A
Number of Levels 1
Voltage 300V
Approval Agency CB, CSA, UL, VDE
Current Rating 12A
Insulation Height 0.413 10.49mm
Depth 10.5mm
Orientation Straight
Pitch 0.200 5.08mm
Additional Feature PA, 94V-0
Voltage - Rated 320V
Gender Female
Number of Rows 1
Color Green
Type Plug Housing for Female Sockets
Connector Type Crimp, Socket
ECCN Code EAR99
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON MSTBC
Published 2011
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Plug-In
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
