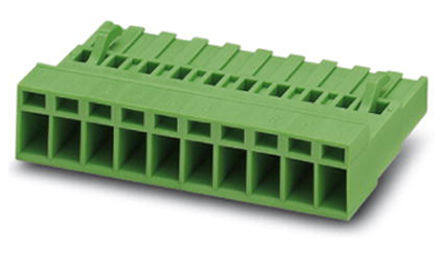

1809653
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 17 Pos 5.08mm pitch Plug 20-14 AWG Crimp
PDF
/
Inventory: 1157
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTBC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Crimp
Type Plug Housing for Female Sockets
Number of Positions 17
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.413 10.49mm
Current Rating 12A
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 20 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-20 AWG
Voltage - IEC 630V
Number of Ways 17
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-2.5mm2
Current - IEC 12A
Wire Cross Section 2.5 mm2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
