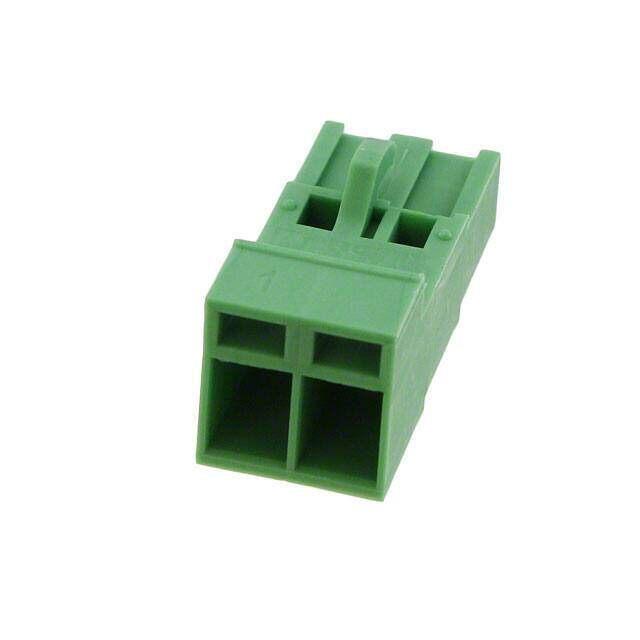

1809501
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Terminal Blocks F 2 POS 5.08mm Crimp ST Cable Mount 12A
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.6336
≥1 USD $0.6336
≥10 USD $0.61864
≥100 USD $0.57816
≥500 USD $0.531872
≥1000 USD $0.521946
Inventory: 168
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 25mm
Length 10.12mm
Height 10.5mm
Technical
Fastening Method SCREW
Wire Gauge or Range - mm2 0.5-2.5mm2
Plug Wire Entry 180°
Safety Approval UL; CSA
Number of Ways 2
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-20 AWG
Number of Decks 1
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 20 AWG
Current 10A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 320V
Voltage 300V
Number of Contacts 2
Current Rating 12A
Insulation Height 0.413 10.49mm
Depth 25mm
Orientation Straight
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Voltage - Rated 320V
Gender Female
Number of Rows 1
Color Green
Type Plug Housing for Female Sockets
Connector Type Crimp, Socket
ECCN Code EAR99
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
Series COMBICON MSTBC
Published 2011
Packaging Bulk
Physical
Weight 1.32001g
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
