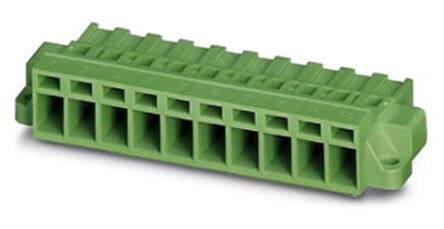

1809491
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON MSTBC RoHS Compliant 2010 Mounting Flange Terminal Block Plug Housing for Female Sockets UL94V-0 14AWG 180° 10A
PDF
/
Inventory: 1141
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 12A
Wire Gauge or Range - mm2 0.5-2.5mm2
Plug Wire Entry 180°
Voltage - IEC 630V
Wire Gauge or Range - AWG 14-20 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 14 AWG
Current 10A
Number of Levels 1
Voltage 300V
Current Rating 12A
Insulation Height 0.421 10.70mm
Pitch 0.200 5.08mm
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated 320V
Color Green
Number of Positions 24
Type Plug Housing for Female Sockets
Connector Type Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mounting Flange
Series COMBICON MSTBC
Published 2010
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 7 Weeks
