1809445
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

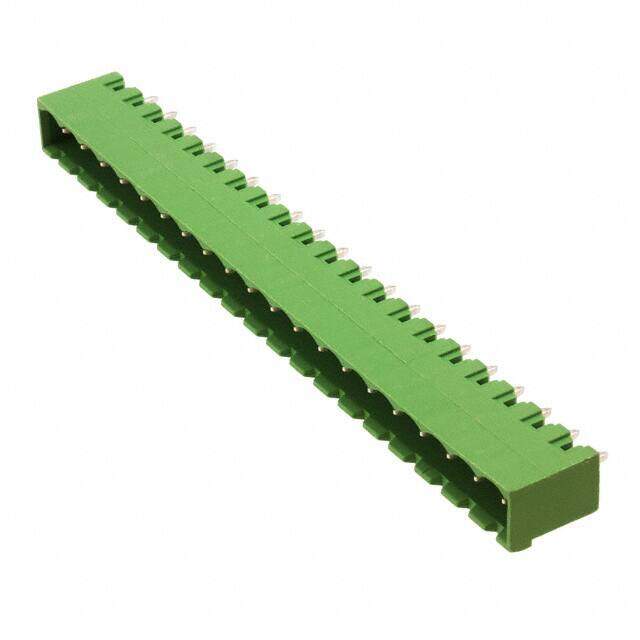

Pluggable Terminal Blocks 20 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 4344
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 20
Current - IEC 12A
Header Orientation Vertical
Voltage - IEC 400V
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.154 3.90mm
Voltage 300V
Approval Agency cULus
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.472 12.00mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Voltage - Rated 250V
Color Green
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBVA
Published 2012
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
