1809267
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

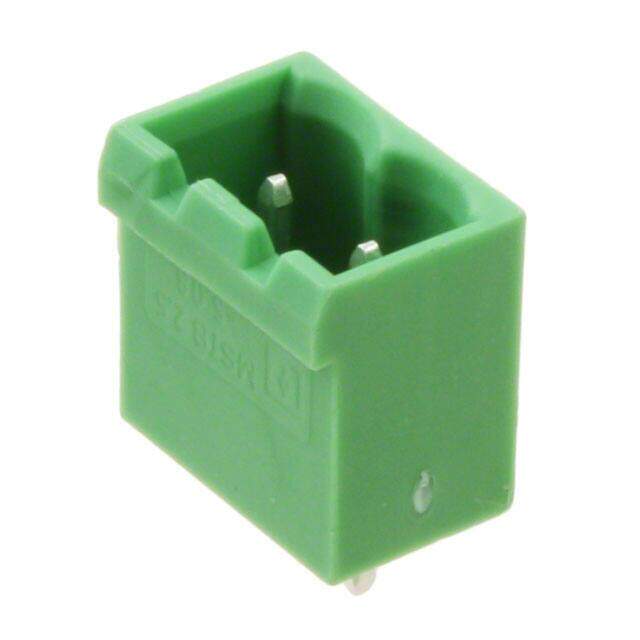

Pluggable Terminal Blocks 2 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1
Unit Price: USD $1.0032
≥1 USD $1.0032
≥10 USD $0.97416
≥100 USD $0.9108
≥500 USD $0.837936
≥1000 USD $0.822237
Inventory: 166
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Material PBT
Housing Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2012
Series COMBICON MSTBVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Gender Male
Voltage - Rated 250V
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Depth 12mm
Insulation Height 0.472 12.00mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Solder
Approval Agency cULus
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - IEC 400V
Header Orientation Vertical
Current - IEC 12A
Number of Positions Per Level 2
Dimensions
Width 8.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
