1809212
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

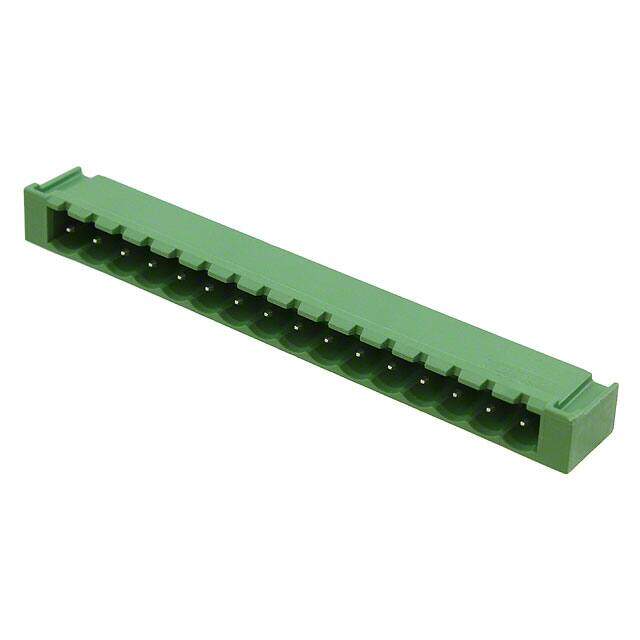

Pluggable Terminal Blocks 16 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.37
Unit Price: USD $4.368698
≥1 USD $4.368698
≥10 USD $4.121409
≥100 USD $3.888129
≥500 USD $3.668049
≥1000 USD $3.460425
Inventory: 6375
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12mm
Length 91.44mm
Technical
Number of Positions Per Level 16
Current - IEC 12A
Header Orientation 90°, Right Angle
Voltage - IEC 400V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Approval Agency cULus
Termination Style Solder
Current Rating 12A
Insulation Height 0.339 8.61mm
Depth 8.6mm
Orientation Straight
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Voltage - Rated 250V
Gender Male
Color Green
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp
Series COMBICON MSTBA
Published 2012
Packaging Bulk
Physical
Housing Material Polybutylene Terephthalate (PBT)
Material PBT
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 5 Weeks
