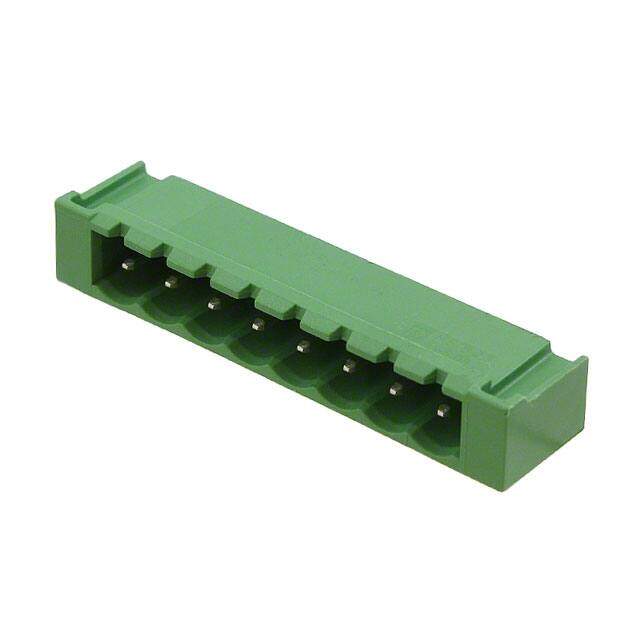

1809131 image
Favorite
1809131 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 8 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.722349
≥1 USD $2.722349
≥10 USD $2.568255
≥100 USD $2.422883
≥500 USD $2.285729
≥1000 USD $2.156353
Inventory: 1209
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Number of Positions Per Level 8
Current - IEC 12A
Header Orientation 90°, Right Angle
Voltage - IEC 400V
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Approval Agency cULus
Termination Style Solder
Current Rating 12A
Insulation Height 0.339 8.61mm
Pitch 0.200 5.08mm
Voltage - Rated 250V
Color Green
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp
Series COMBICON MSTBA
Published 2012
Packaging Bulk

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 4 Weeks
