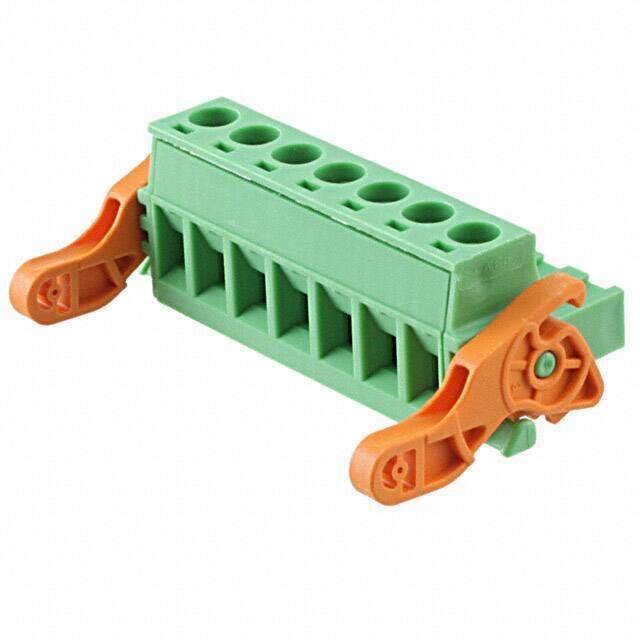

1808938 image
Favorite
1808938 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description COMBICON MSTB RoHS Compliant 2012 Ejector Latches Terminal Block Plug, Female Sockets UL94V-0 30AWG 180° 15A
PDF
/
Buying Options
Total Price: USD $6.45
Unit Price: USD $6.445796
≥1 USD $6.445796
≥10 USD $6.080946
≥100 USD $5.736734
≥500 USD $5.412018
≥1000 USD $5.105676
Inventory: 8471
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Screw Size M3
Number of Positions Per Level 7
Current - IEC 12A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Voltage - UL 300V
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Voltage 300V
Approval Agency cULus
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.591 15.00mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Voltage - Rated 250V
Color Green
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Ejector Latches
Series COMBICON MSTB
Published 2012
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 6 Weeks
