1808925
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

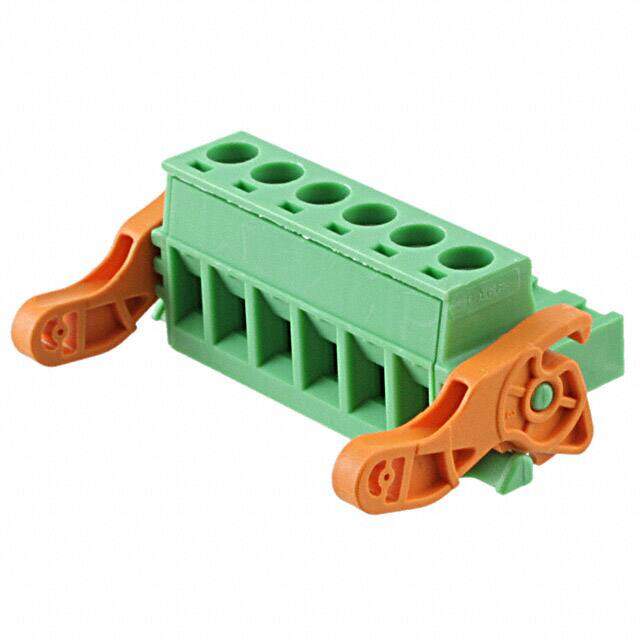

Pluggable Terminal Blocks 6 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Buying Options
Total Price: USD $5.72
Unit Price: USD $5.716452
≥1 USD $5.716452
≥10 USD $5.392883
≥100 USD $5.087623
≥500 USD $4.79964
≥1000 USD $4.52797
Inventory: 6757
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 29.3mm
Technical
Wire Cross Section 2.5 mm2
Screw Size M3
Number of Positions Per Level 6
Current - IEC 12A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval CUL; EAC; EN; UL; VDE
Number of Ways 6
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-30 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 30 AWG
Current 15A
Number of Levels 1
Voltage 300V
Approval Agency cULus
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Reach Compliance Code not_compliant
Insulation Height 0.591 15.00mm
Depth 15.5mm
Orientation Straight
Pitch 0.200 5.08mm
Additional Feature PA, UL94V-0
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Ejector Latches
Series COMBICON MSTB
Published 2012
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
