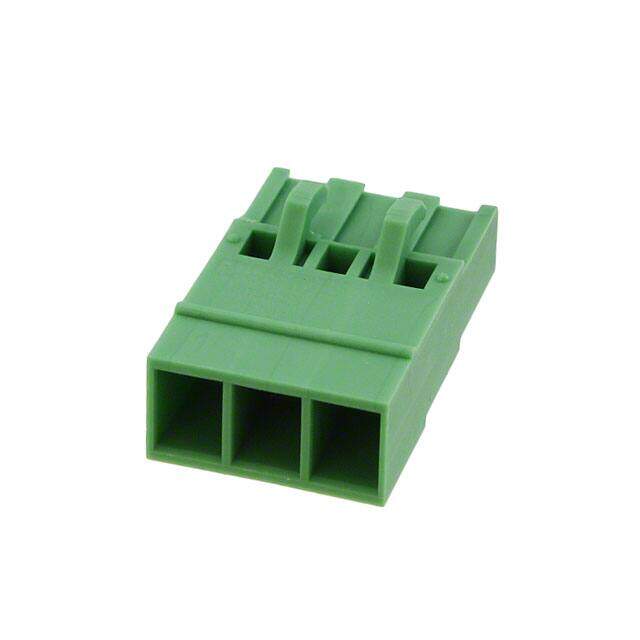

1808829
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Terminal Blocks F 3 POS 5.08mm Crimp ST Cable Mount 12A
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9856
≥1 USD $0.9856
≥10 USD $0.95744
≥100 USD $0.89496
≥500 USD $0.823328
≥1000 USD $0.807946
Inventory: 553
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Cable, Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 1.719994g
Technical
Packaging Bulk
Published 2012
Series COMBICON MSTBC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
ECCN Code EAR99
Connector Type Crimp, Socket
Type Plug Housing for Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 320V
Additional Feature PA, 94V-0
Pitch 0.200 5.08mm
Orientation Straight
Depth 25mm
Insulation Height 0.394 10.00mm
Current Rating 12A
Number of Contacts 3
Voltage 300V
Max Supply Voltage 320V
Max Current Rating 12A
Number of Levels 1
Current 10A
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 20 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-20 AWG
Voltage - IEC 630V
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Cross Section 2.5 mm2
Dimensions
Height 15.2mm
Length 15.2mm
Width 25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
