1808763
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

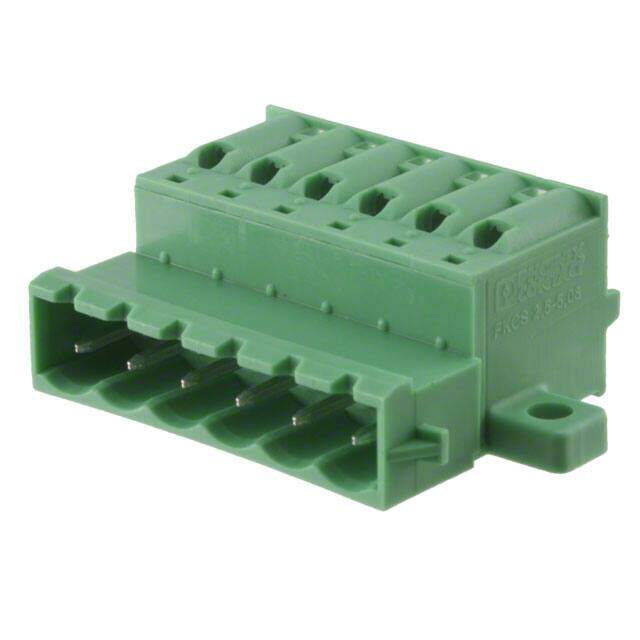

COMBICON FKICS RoHS Compliant 2013 Mounting Flange Terminal Block Plug, Male Pins 12AWG 180° 10A 300V
PDF
/
Buying Options
Total Price: USD $7.58
Unit Price: USD $7.584806
≥1 USD $7.584806
≥10 USD $7.155483
≥100 USD $6.750447
≥500 USD $6.368351
≥1000 USD $6.007876
Inventory: 5369
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Current - IEC 12A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-26 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 12 AWG
Current 10A
Number of Levels 1
Voltage 300V
Termination Style Screwless - Push-In Spring
Current Rating 12A
Insulation Height 0.591 15.00mm
Pitch 0.200 5.08mm
Voltage - Rated 320V
Color Green
Number of Positions 6
Type Plug, Male Pins
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mounting Flange
Series COMBICON FKICS
Published 2013
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 4 Weeks
